Key Features of Conveyor Snub Pulley drum
(1).Steady running, reliable quality and reduce maintenance;
400mm diameter cement and coal indusry used Conveyor Snub Pulley drum
Conveyor Snub Pulley drum also called tail pulley, It is mainly used to change the running direction of conveyor belt or press conveyor belt to increase the angle between conveyor belt and driving drum. It has the characteristics of compact structure, light weight, less occupancy, reliable performance, beautiful appearance, safe and convenient use, and can still work normally under the harsh conditions of large dust, damp and muddy.
1.Key Features of Conveyor Snub Pulley drum
(1).Steady running, reliable quality and reduce maintenance;
2.Components of Conveyor Snub Pulley drum
1).The belt conveyor drum/ pulley is made by large seamless steel.
2).Use flame cutting machine to precisely cut.
3).Weld the pulley inner disc with professional welding machine .
4).Weld the shaft sleeve and disc with the positioner.
5).Process the outside circle with large drum lathe to guarantee the even wall thickness.
6).We select #45 round steel and sleeve to ensure the concentricity and reduction for the eccentric shaft force.
7).Equip the inner bearing enlargement device to avoid bearing damage from beating.
Parameter of Conveyor Snub Pulley drum | |||
TYPE | Belt width (mm) | Standard diameter (mm) | Length (mm) |
TD75 | 500 | 320/400 | 600 |
650 | 320/400 | 750 | |
800 | 320/400/500 | 950 | |
1000 | 400/500/630 | 1150 | |
1200 | 400/500/630/800 | 1400 | |
1400 | 400/500/630/800 | 1600 | |
DTII | 500 | 250/315/400/500 | 600 |
650 | 315/400/500 | 750 | |
800 | 315/400/500 | 950 | |
1000 | 400/500/630 | 1150 | |
1200 | 400/500/630 | 1400 | |
1400 | 400/500/630/800 | 1600 | |
Note: The length of pulley also depends on your need. | |||
Advantage of Conveyor Snub Pulley drum
Our pulley adopts advanced providing thick pulley shell which can absorb more stress and also offering advantages such as maximun contact with belt, reducing shaft deformation and stress on the bearing, to ensure proper functioning.
The international Market: Middle east, South America, Africa, Southeast Asia. Etc.

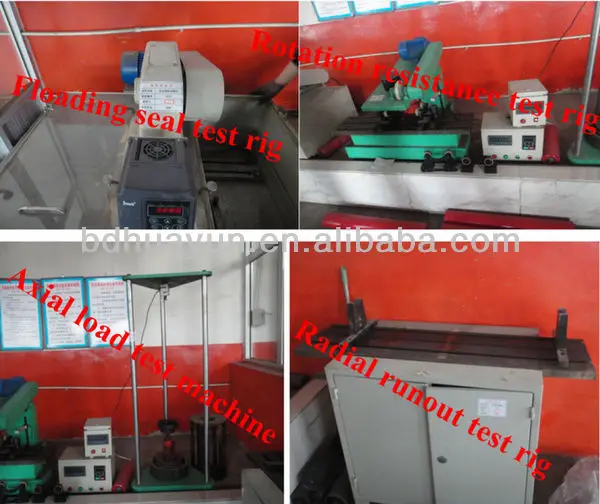

Testing measures
We have strict quality testing and performance testing to ensure
the quality of belt conveyor bend drum pulley
The Certification
Production capacity: as usual 3000 pieces/ month, but urgent order is acceptable
Certificate: ISO9001:2008, MA, TUV

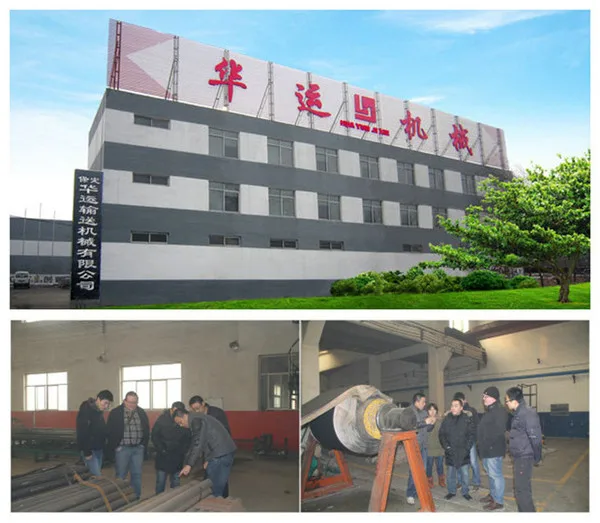

Our factory and client
We are ready to cooperate with our friends both at home and abroad to build a bright future!
We sincerely welcome any cooperation with you in the future.
Q: Are you a factory or trading company?
A: We are a factory that produce conveyor roller, electric driving pulley and conveyor belt.
Q: What is the material of your porducts?
A: The tube is Q235 carbon steel and the shaft is A45# steel. We can also choose material as customers' requirment.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Liutuoying Village, Boye County, Baoding City, Hebei Province, China,near Beijing. You can fly to Beijing airport and entrain to Baoding. All our clients, from home or abroad,are warmly welcome to visit us!
Q: How dose your factory do regarding quality control?
A: Quality is priority. Huayun people alwyas attache great importance to quality controlling from the very begining to the very end. Our factory has gained ISO9001:2008, MA, TUV authentication.
