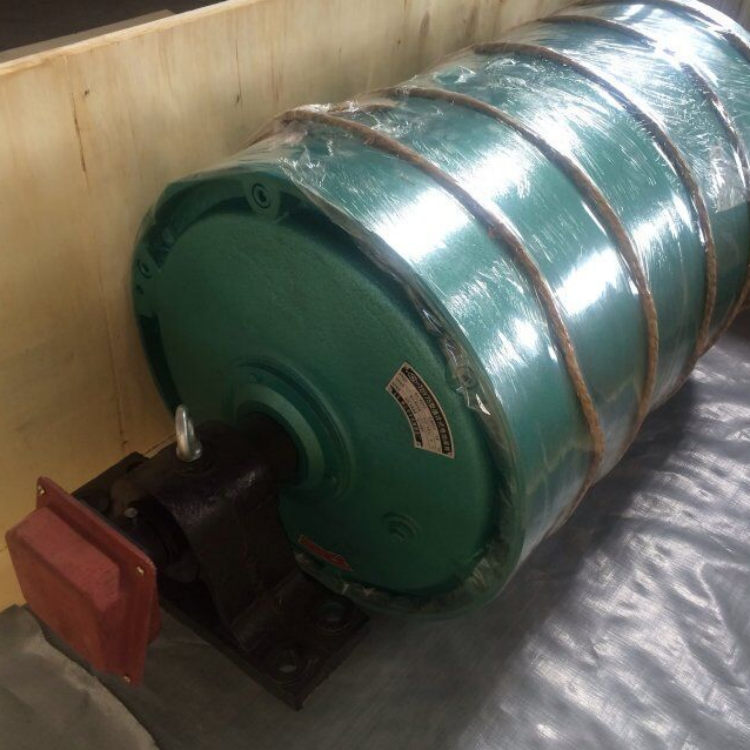

DY Type Oil Steeped Motorized Drum

Feature of Motorized drum for conveyor

1.Steady running, reliable quality and reduce maintenance;

2.Less movement longitudinally, rotating smoothly, extends the life span;

3.Various bearing housing and sealing structure are available for the customers choice;

4.Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

5.Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,

low shaking and less noise.

Inquire Now Next Product

product details

DY type oil steeped motorized drum

Certification: ISO, CE

Type conveyor: DTII, TD75

Bearing NO: 1310,1312,1314,1316,3520,3524,3532 etc

Material: carbon steel, Rubber , nylon etc.

Belt width: from 300mm to 2400mm

The international Market: Middle east, South America, Africa, Southeast Asia. Etc.

Feature of Motorized drum for conveyor

1.Steady running, reliable quality and reduce maintenance;

2.Less movement longitudinally, rotating smoothly, extends the life span;

3.Various bearing housing and sealing structure are available for the customers choice;

4.Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

5.Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,

low shaking and less noise.

Components of conveyor drum

1.High quality raw material: Q235 / Q 245 / Mn steel plate.

2.Bearing: LYC, HRB, NTN, etc.

3.Long service life (about 8 years).

4.It can work in the dusty, wet, muddy or other harsh environments.

5.Welding: Mixed gas TIG.

6.Painting: ordinary painting, hot-dip galvanzing, electrostatic spray, baking varnish

7.Lubrication: Lithium grease, rust Inhibitor.

2012031565574657 (1).jpg

Parameter for reference

Parameter of conveyor drum pulley
Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
Driving pulley, bend pulley	500	500	Length of pulley depends on the width of conveyor belt
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400
